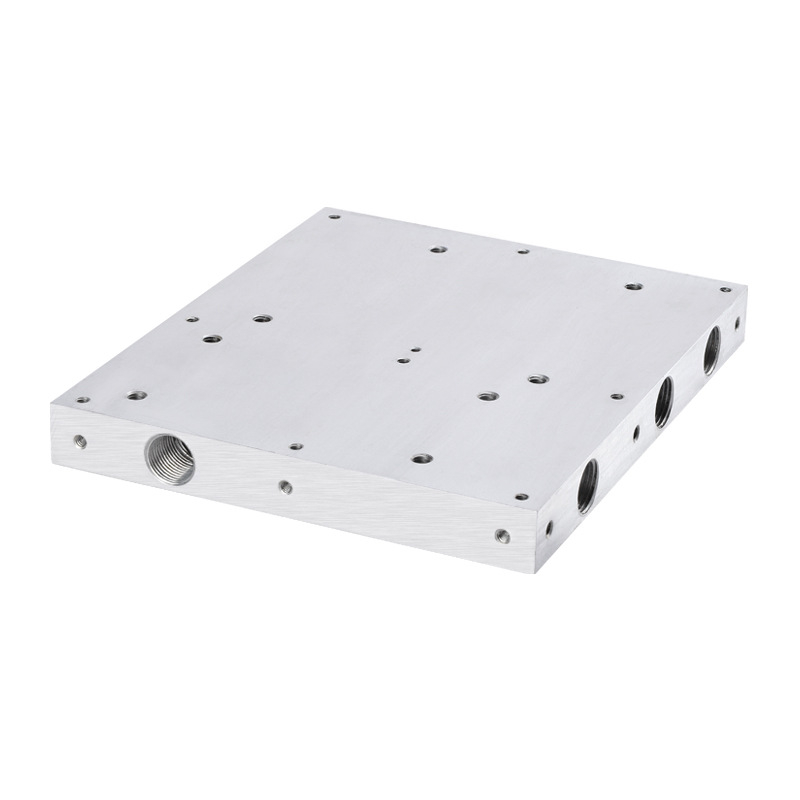

Product Name : Friction stir Welding Liquid Cold Plate Aluminum Refrigeration Parts Water Cooling Plate
PRODUCT DESCRIPTION | ||
NO. | ITEM | DESCRIPTION |
1 | Material | Aluminum alloy 3003, 6063,6061 |
2 | Dimension (L*W*T) | Up to 500*500*15 mm |
3 | Cooling Capacity | 500 to 1500 W |
4 | Working Pressure | 3 to 4 bars |
5 | Flatness | 0.15 mm |
6 | Surface roughness | 3.2 um |
7 | Flow rate | 5 to 10 L/min |
8 | Manufacturing Method | CNC machining Plus Friction Stir Welding |
9 | Joining Method | Friction Stir Welding |
10 | Cooling Method | Liquid cooling |
11 | Surface Finish | Mill finish or anodization |
12 | Coolant | Deionized Water,Inhibited Glycol and Water,Dielectric fluid |
13 | Warranty time | 1 year |
14 | Place of Region | Jiangsu province of China |
15 | Reference Standard | GB/T 3190-2008,GB/T 14846-2008,ISO 2768 |
Metalli’s cold plate technologies include
◆ Vacuum brazed or controlled atmosphere brazed and CNC machined performance fin cold plates and chassis
◆ Friction Stir Welded (FSW) performance-fin cold plates and chassis
◆ flat tube cold plates
◆ Press lock Copper tubed cold plates
◆ Vacuum brazed and CNC machined copper cold plates
◆ Stamped and vacuum brazed cold plates
◆ Gun-drilled custom cold plate
◆ Custom channeled cold plate with ladder configuration
◆ Inner-Finned Brazed Cold Plates
◆ Aluminum extruded and welded or brazed cold plate
◆ Aluminum die casting and welded or brazed cold plate
▲ Components for vacuum brazed cold plate
▲ Stamped and vacuum brazed cold plate
▲ Copper tubed cold plate
We also supply value added components as below
● Fittings and connectors
● Hoses and tubes
● Heat exchangers or radiators
● Pumps and reservoirs
● Fans
● Other accessories
▲ Radiator ▲ Pump
Friction Stir Welding
Friction Stir Welding (FSW) is a solid state joining process that uses a customized tool consisting of a probe (pin) and shoulder. The tool is submerged into two solid materials at a joint line using the downard and rotational force of a spindle to generate heat frictionally. As the tool traverses, the probe stirs material forming a solid-phase joint.
Cold plates are products that are often friction stir welded. This process is implemented on a high speed vertical CNC machine. Machining and welding are done on same work center resulting in superior alignment and registration of part and minimizes queue time.
FSW offers numerous advantages:
· Faster Prototyping
· Higher Production Volume
· Shorter Production Lead Times
· Most economical solution for simpler design
With faster prototyping, higher production volume and shorter lead times, friction stir welding is the preferred process for manufacturing cold plates for those customers looking for a cost effective solution for their products.
