| Specification | |

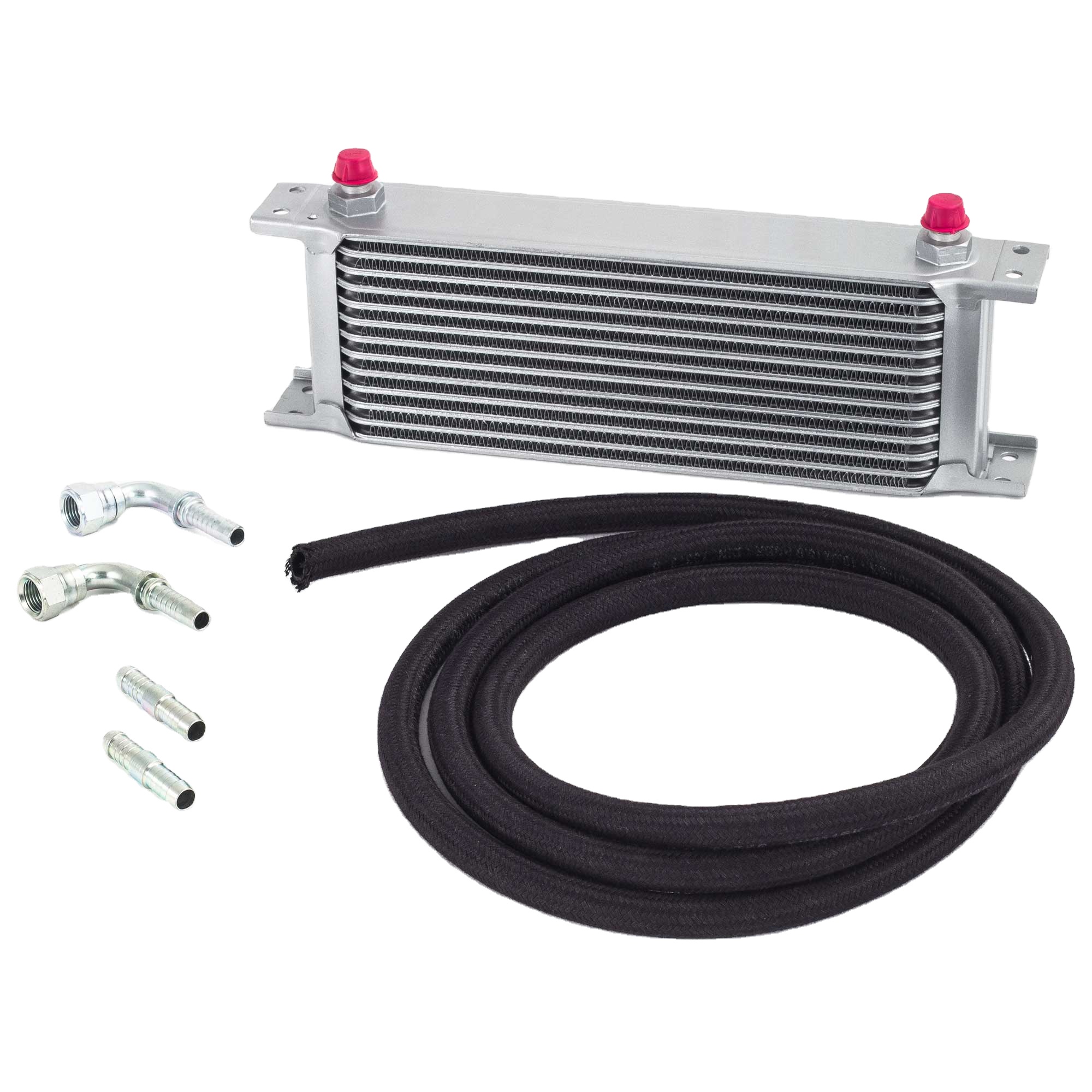

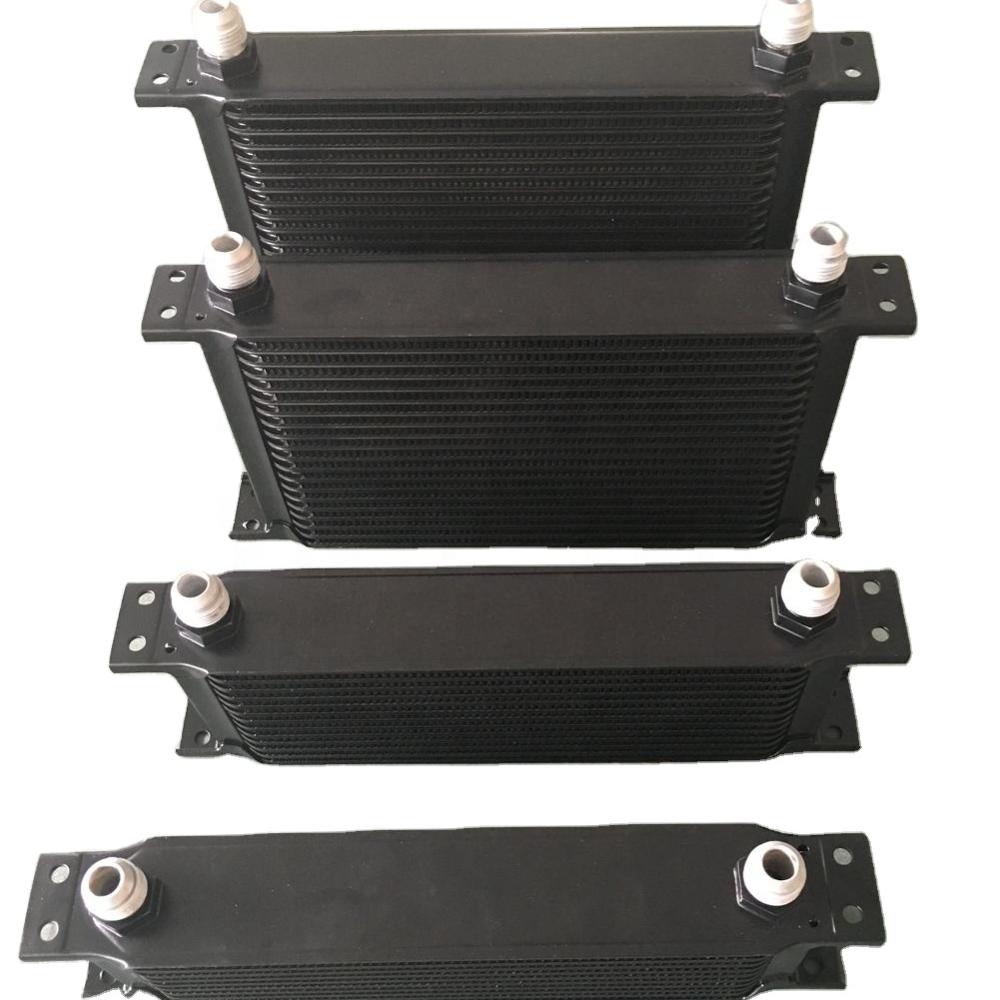

| Item name | oil cooler |
| Application | Universal vechicle |
| Material | Aluminum |
| Color | Balck or Silver |
| MOQ | 1 unit |
| Warranty | 18 Months |
| Lead Time | 2 weeks for sample |
M-stirlings's intercooler technologies include
◆ Vacuum brazed aluminum intercooler with aluminum die casting tanks welded
◆ Controlled atmosphere brazed aluminum intercooler with aluminum die casting tanks welded
◆ Vacuum or CAB brazed aluminum intercooler with aluminum sheet metal fabricated tanks welded
◆ Vacuum or CAB brazed aluminum intercooler with aluminum extruded tanks welded
▲ Auto intercooler
▲ Truck intercooler
Brief of intercooler
An intercooler is a heat exchanger used to cool a gas after compression. Often found in turbocharged engines, intercoolers are also used in air compressors, air conditioners, refrigeration and gas turbines.
Mstirling provides multiple plate fin heat exchangers. Such as oil cooler, water radiator, air cooler, intercooler,air/oil combin-cooler for air compressors , pre-cooled heat exchanger for refrigerated air dryer, hydraulic oil Coolers,air separator, condenser, evaporator, radiator with fan motor with many kinds of fins, wavy-fin, serrated-fin(offset-fin), plain-fin, louvered-fin, perforated-fin .etc.
Wide Applications
Most commonly used with turbocharged engines, an intercooler is used to counteract the heat of compression and heat soak in the pressurised intake air. By reducing the temperature of the intake air, the air becomes denser (allowing more fuel to be injected, resulting in increased power) and less likely to suffer from pre-ignition or knocking. Additional cooling can be provided by externally spraying a fine mist onto the intercooler surface, or even into the intake air itself, to further reduce intake charge temperature through evaporative cooling.
Multiple stages of compression
In automotive engines where multiple stages of forced-induction are used (e.g. a sequential twin-turbo or twin-charged engine), the intercooling usually takes place after the last turbocharger/supercharger. However it is also possible to use separate intercoolers for each stage of the turbocharging/supercharging, such as in the JCB Dieselmax land speed record racing car. Some aircraft engines also use an intercooler for each stage of the forced induction.[citation needed] In engines with two-stage turbocharging, the term intercooler can specifically refer to the cooler between the two turbochargers and the term aftercooler is used for the cooler located between the second-stage turbo and the engine. However, the terms intercooler and charge-air cooler are also often used regardless of the location in the intake system.
Air compressors
Intercoolers are used to remove the waste heat from the first stage of two-stage air compressors. Two-stage air compressors are manufactured because of their inherent efficiency. The cooling action of the intercooler is principally responsible for this higher efficiency, bringing it closer to Carnot efficiency. Removing the heat-of-compression from the discharge of the first stage has the effect of densifying the air charge. This, in turn, allows the second stage to produce more work from its fixed compression ratio. Adding an intercooler to the setup requires additional investments
▲ Front mounted Air to Air Intercooler
